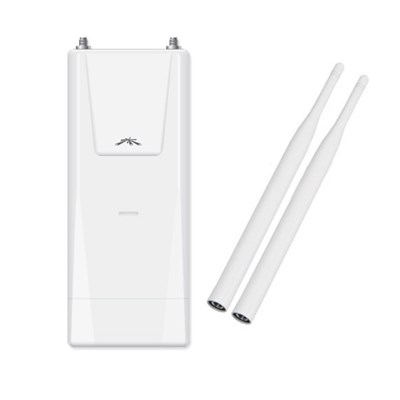

Designed for noisy, high-density environments, the UAP-Outdoor AP+ utilizes our innovative Multi-Lane RF technology to provide superior capacity and throughput. The UAP-Outdoor AP+ includes two external antennas and a secondary Ethernet port for bridging. It supports 802.11n MIMO, with speeds of up to 300 Mbps and a range of up to 183 m (600 ft). It includes two 5dBi external antennas and 2×10/100Mbps Ethernet ports. UAP-Outdoor AP+ supports both 48V passive PoE and 802.3af powering options.
Main features
- Utilize Multi-Lane RF Technology for high-density applications
- Up to 28dBm 2.4GHz 2×2 MIMO Networking///Wireless interface

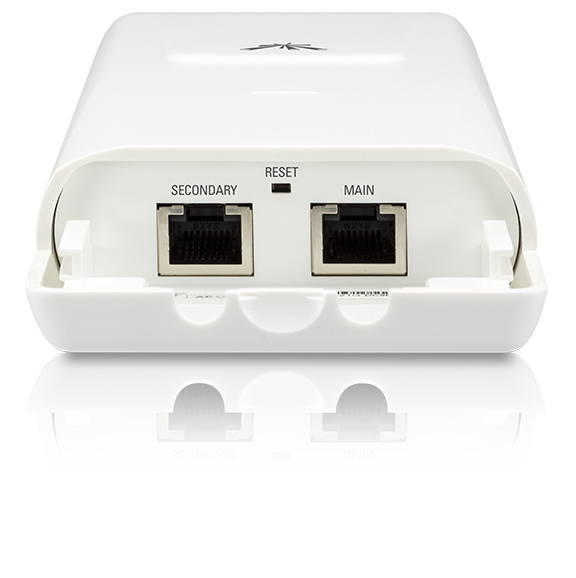

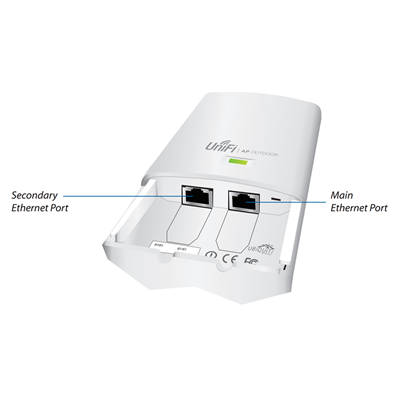

- 2x 10/100Mbps Ethernet ports
- 48V passive PoE and 802.3af support
UniFi Software main features
- Zero Handoff Roaming
- Auto-detection of new APs
- Multi‒Site Management
- Detailed Analytics
- WLAN Groups
- Networking///Wireless Uplink
- Guest Portal/Hotspot Support
Multi-Lane RF Technology
Networking///Wireless client devices in high-density areas experience significant interference and noise stemming from multiple APs using the same operating band.
With the launch of the UniFi AP-Outdoor AP+, Ubiquiti Networks introduces our patented Multi-Lane RF™ technology, which optimizes the operating channel and rejects interference using specialized circuitry, the High-Selectivity Receiver (HSR).
Our innovative Multi-Lane RF technology isolates signalson the operating channel and removes adjacent channel interference. Networking///Wireless capacity and throughput areincreased in high-density areas, and multiple APs can operate in close proximity.
When the UniFi AP-Outdoor AP+ operates on channel 6, its HSR filter specifically eliminates all non-channel 6 frequencies, creating a clean spectrum with minimal noise. So with Multi-Lane RF technology, you truly have three high-speed, multi-lane channels (1, 6, and 11) available for superior capacity and throughput.
Specification
| UniFi AP-Outdoor AP+ | |
| Dimensions | 205 × 83 × 37 mm |
| Weight | 250 g (without Antennas) 294 g (with Antennas) |
| Networking Interface | 10/100 Ethernet Ports |
| Buttons | Reset |
| Antennas | External 5 dBi Omni Antennas Included 191 mm (Length), 13 mm (Diameter) |
| Wi-Fi Standards | 802.11 b/g/n |
| Power Method | Passive Power over Ethernet (48V), 802.3af Supported |
| Power Supply | 48V, 0.5A PoE Adapter (Included) |
| Maximum Power Consumption | 8 W |
| Maximum TX Power | 28 dBm |
| BSSID | Up to Four Per Radio |
| Power Save | Supported |
| Networking///Wireless Security | WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -30 to 65° C |
| Operating Humidity | 5 – 95% Non-Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| Supported Data Rates (Mbps) | |
| Standard | Data Rates |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
